Motion Sensor

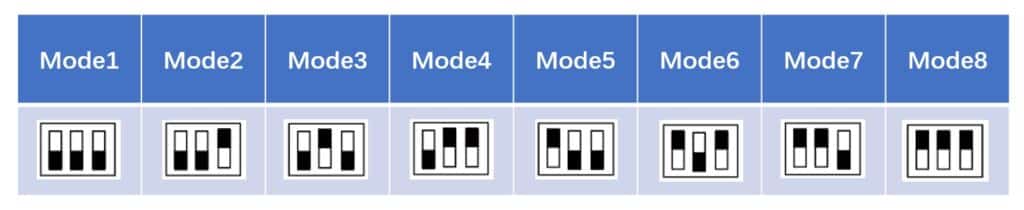

Introduction of working modes
- Test mode: This mode is suitable for on-site testing by installers. Detection is carried out 1 minute after the last alarm. If human movement is detected again, an alarm message will be sent. It automatically enters this mode after the last self-check is completed and exits this mode after 5 minutes.
- Intelligent anti-theft alarm:
  - Working mode 1: Ordinary safety anti-theft mode. Detection is carried out 5 minutes after the last alarm. If human movement is detected again, an alarm message will be sent. This mode is suitable for places where there is no human activity during normal use. Generally, the product leaves the factory in this mode.
  - Working mode 2: High-security anti-theft mode. Detection is carried out 1 minute after the last alarm. If human movement is detected again, an alarm message will be sent. This mode is suitable for places where there is no human activity during normal use and where the safety coefficient requirement is very high.
  - Working mode 3: Energy-saving anti-theft mode. Detection is carried out 60 minutes after the last alarm. If human movement is detected again, an alarm message will be sent. This mode is suitable for normal use in places where there are fewer people, and the activity rules are not typical.
  - Working mode 4: Intelligent anti-theft mode. After the last alarm, if there are continuous people, no alarm will be issued. If there are no people for 10 minutes and then people are detected again, an alarm will be issued. This mode is suitable for office places where there are always people during the day and no anti-theft alarm is needed, and it automatically enters the anti-theft alarm state at night when there are no people.
- Intelligent energy monitoring:
  - Working mode 5: Automatic energy management mode. If there are no people for 5 consecutive minutes, a no-person alarm message will be sent, and it enter the no-person state. If someone breaks in during this state, a person – present alarm message will be sent immediately. This mode is suitable for the management of office lights and air conditioners, the management of corridor and restroom lights, and the exhaust system, lights, and air conditioners in public places.
- Intelligent care monitoring:
  - Working mode 6: 8 – hour no – person reminder alarm mode. If there are no people for 8 consecutive hours, a no-person alarm will be issued.
  - Working mode 7: 12 – hour no – person reminder alarm mode. If there are no people for 12 consecutive hours, a no-person alarm will be issued.
  - Working mode 8: 24 – hour no – person reminder alarm mode. If there are no people for 24 consecutive hours, a no-person alarm will be issued.

After the communication and working mode are normal, install the detector on the bracket, adjust the direction to let the detector be used at the best angle.

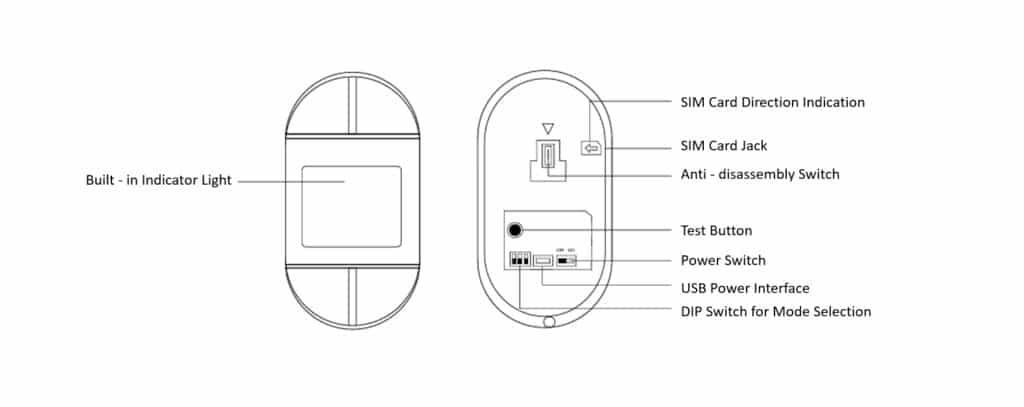

After the product is installed, the anti-disassembly switch will automatically enter the normal working mode (when the anti-disassembly switch is closed for more than 5 seconds). If an alarm is triggered, the red light will flash once, indicating that the alarm is triggered. The green light will flash once, indicating that the communication has been sent. Note: If the anti-disassembly switch is pressed briefly, it is only to test whether the anti-disassembly switch function is normal, and at this time, the red light will turn on once, and no anti-disassembly information will be sent externally.
During normal use, if an alarm occurs, the red light will flash once. If the data transmission is successful, the green light will flash once. If the data transmission fails, the red light will flash three times.
When the battery is low, it will notify the cloud platform of the low battery and prompt to replace the battery. At the same time, the green light will flash three times. It will flash once every 1 hour.
If the product sends a large amount of alarm data in the application scenario, it is recommended to use a USB power supply for the power supply.

Parameters	Details
Communication Mode	NB – IoT /LoRa/Cat.1
Detection Method	Pyroelectric infrared detection

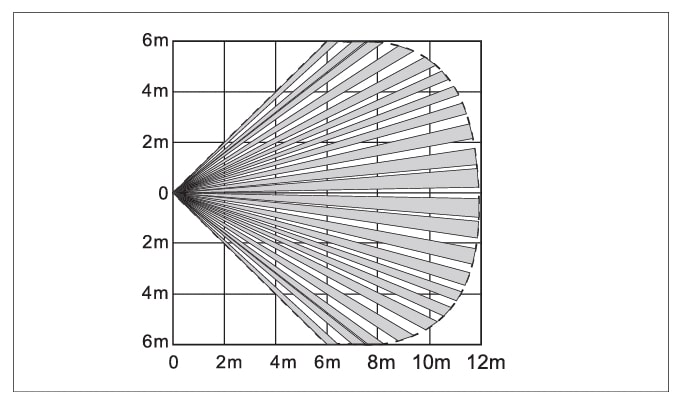

Detection Distance	12m directly in front (at room temperature of 20°C)
Power Supply Method	External USB power supply and battery power supply
USB Power Supply	5V 1A
Battery	Can be powered by 1 or 2 lithium-ion batteries
Battery Voltage	3V
Working Modes	8 working modes

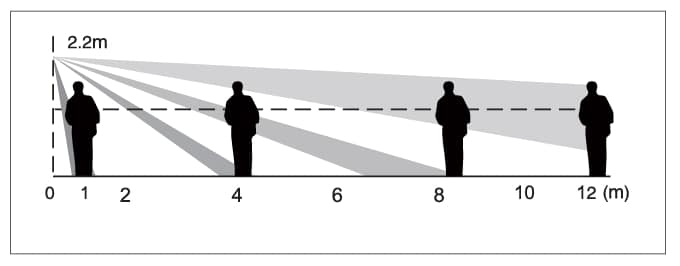

Installation Height	2.2 meters
Detection Angle	110 degrees
Operating Temperature	– 10°C to + 55°C
Operating Humidity	Less than 95%RH
Installation Method	Wall-mounted
Dimensions	113mm * 55mm * 38mm
