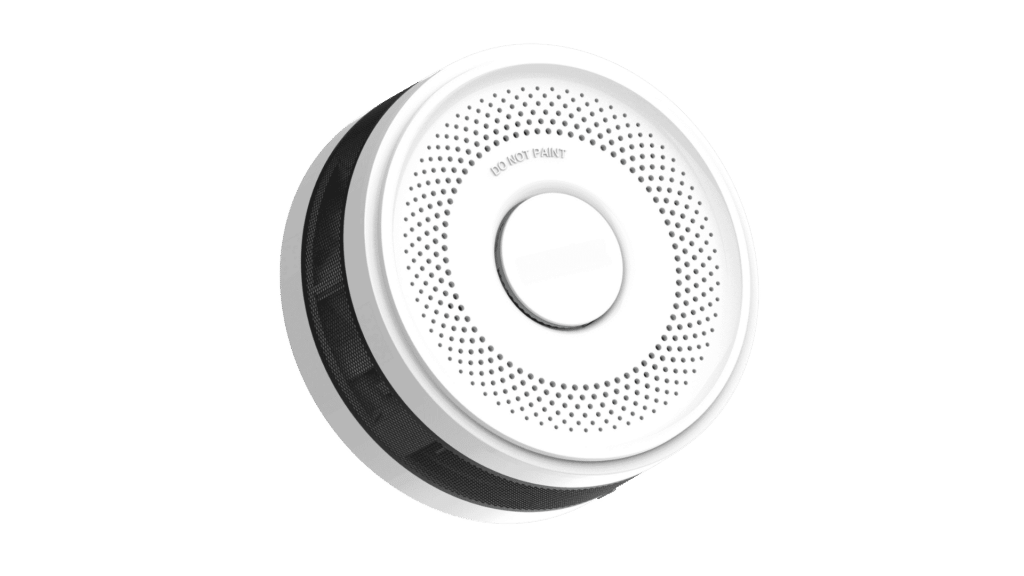

Smoke Detector

Smart smoke detectors offer advanced features like early fire detection, sound alerts, remote monitoring, and integration with smart home systems, providing enhanced safety and convenience.
Stay connected to your smoke detectors at all times with instant app push notifications. In case of a fire or emergency, you will receive immediate alerts on your phone, no matter where you are.

Smoke alarm
Temperature alarm
Anti-dismantling alarm

Smart phone APP notification
SMS/TTS Notification
Email Notification

NB-loT

3.OV Lithium battery

Need consultation?

Share your idea, We’ll find solution for you within 24 hours

Feature list	Description
Normal mode	The device will enter normal mode after self-inspection, and start monitoring the ambient smoke concentration and periodically report the heartbeat to the cloud. The red LED flashes once every 46 seconds approximately.
Smoke alarm	When smoke concentration reaches the alarm threshold, the device sounds and the red LED flashes once every 1 second. Meanwhile the smoke alert would be sent to the cloud platform through network. When the on-site smoke concentration is getting lower than the threshold, the device would automatically exit the smoke alarm .No smoke alarm when the back cover of the device is removed.
Single Silence in smoke alarm	When the device detects smoke and sounds an alarm, press the button in the center for more than 2 seconds or initiate a “Single Silence”command through the cloud platform to make it enter single silence event. In this event, the device would stop sounding for about 80 seconds, then exit the single silence event automatically.
Continuous Silence in smoke alarm	When the dvice detects smoke and sounds an alarm, initiating a “Continuous Silence” command from the cloud platform can make it enter continuous silence event. The device will stop sounding for about 80 seconds, then sound once, and stop sounding for 80s again, then sound……. until the on-site smoke concentration is lower than the threshold, then the device automatically exits the continuous silience event.
Silent mode	The device enters into silent mode after initiating a “Silent ” command through the cloud platform. When the device detects that the smoke concentration is getting higher than the threshold, it will not sound, but the red LED flashes once every 1 second. Meanwhile the smoke alert would be sent to the cloud platform. Initiating a “Normal/Continuous Disarm Mode” command through the platform could make the device exit the silent mode.
Fire Alarm Confirmation	Once an alarm event is confirmed as fire alarm by service providers or terminal users on the platform, the device would be forced to sound alarms whether it is in “Single /Continuous Silence” event or “Silent mode”, until the end of the event (the on-site smoke concentration is lower than the threshold).
Continuous disarming in smoke alarm	The device enters into continuous disarming mode by downlinking a “Continuous disarming” command through the cloud platform. In this mode, the device will not monitor the ambient smoke concentration. And it exits the continuous disarming mode after an “Normal/Silent mode” command is initiated on the platform. The continuous disarming command cannot be initiated when the device is in fire alarm mode.
Single Disarming	When the device detects smoke and sounds an alarm, initiating a “Single disarming” command on the cloud platform can make it enter single disarming event. Then the device will stop sounding and reporting the smoke alarm to the cloud. When the alarm event ends (the on-site smoke concentration is lower than the threshold), the device automatically exits the single disarming event. The single disarming command cannot be initiated when thedevice is in fire alarm event.
Ultra-low power alert	When the battery power is lower than the ultra-low power threshold, the red LED flashes once every 46 seconds with a “beep” sound, and the ultra-low power alert would be sent to the cloud, reminding the service provider and user to replace battery as soon as possible. The event will be released automatically after a new battery is installed.
Tamper alert	When the device is properly installed and in use, once the device is disassembled from its backplate, it would send a tamper alert to the cloud platform. When the device is reinstalled, it would report a reinstallation message to the platform and the tamper alert would be released automatically.
Self-inspection	The device performs periodic self-inspection on critical components. When a component failure is detected, the equipment reports the fault to the cloud. And the device also reports when the failure is released.
Alarm test	When the device is in normal working mode, press the test button in the center for more than 2 seconds to perform an alarm test. Meanwhile the red LED flashes once every 1 second with a pulsed alarm sound, and the device reports a test alarm to the cloud platform. If the cloud platform receives the test alarm notification, we know that the device is working properly.
Heartbeat report	The device has a working mechanism of periodically reporting heartbeat to the cloud.
Indicator light	The device’s working status can be indicated according to the blinking rules of the LED light indicator. In normal situation: 1. When the device is powered on, the blue LED stays on, indicating that the device enters the initialization status; 2. When the device is searching network, the blue LED light flashes quickly (5 times / second); 3. When the device succeeds to accesse to network, the blue LED light flashes slowly (1 time / second); 4. The device enters the normal working mode in 1 minute after accessing to network, the blue LED turns off and the red LED flashs once every 46 seconds. In NON-normal situation: 1. When the device’s communication function fails, the blue LED flashes 3 times every 10 seconds. 2. When the device accesses to network, but the data transmission fails, the blue LED flashes 2 times every 10 seconds. 3. When the device fails to access to network, the blue LED flashes once every 10 seconds. (When any of the above failures occurs, the blue LED flashes for 30 minutes in the above rules, then the device will enter [Power-Saving Mode] and the blue LED turns off.) 4. When the sensor fails, the red LED generates a double-flashe every 46 seconds.

Model	H6-S
Working Principle	Photoelectric type
Executive Standard	GB20517-2006, EN14604
Working Voltage	DC 3.0V
Quiescent Current (average value)	≤ 20uA
Alarm Current(average value)	≤100mA
Silence Time in Alarm	About 80 seconds
Working Environment	-10°C~65°C Temperature) ≤ 95% (Relative humidity, without condensation)
Alarm Method	Sound and light alarm
Alarm Volume	> 85dB (3 meters)
Ultra-low Voltage Threshold	DC 2.7V
Dimension	102mm (φ)*43.5mm (H)
Network	NB-IoT
SIM Card	Mirco(12mm*15mm)

The following principles should be followed while selecting an installation location:

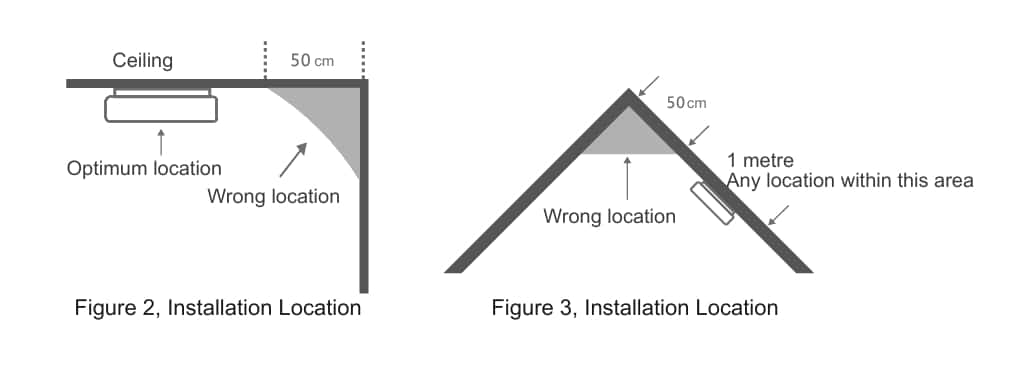

• Device should be installed 50cm away from ceiling-to-wall corner; (see Figure 2)
• When the wall or ceiling is inclined, the installation position should be more than 50cm away from
highest point (see Figure 3)
• If the space is longer than 10 metres, multiple devices will need to be installed.

Installation environment requirements:

The detector should not be installed in areas with high temperature, high humidity, high smoke
concentration, dense dust, dirt, and lots of insects. The detector should remain uncovered at all times.

When the wall or ceiling is inclined, the installation position should be more than 50cm away from the
highest point (see Figure 3)

Important Note:
After the installation location is selected, please select an appropriate installation method on the
premise of ensuring that the device is installed safely and securely. If the device is not installed
securely, it could fall.

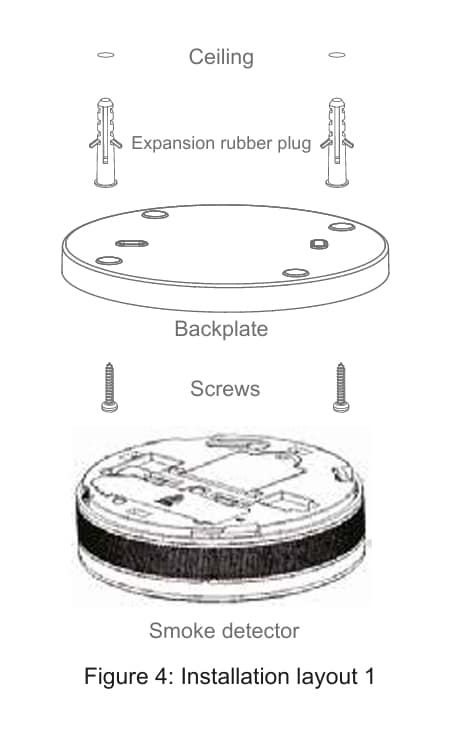

Installation method 1 (see Figure 4, this installation method is recommended)

Installation method 2 (see Figure 5)
